Key Takeaways
- Plastic insulation sheets do far more than insulate. In modern OEM systems, they often function as structural, thermal, and electrical components that must hold tolerances, manage heat, and maintain electrical separation over long service lives.
- Thermoset composite sheets are the preferred choice for demanding applications. Materials such as epoxy laminate sheets, phenolic laminate sheets, and polyester laminate sheets maintain dimensional stability, dielectric strength, and mechanical integrity under continuous heat and load.
- G10, G11, and FR4 insulation sheets are industry standards for a reason. These NEMA grade insulation sheets deliver reliable electrical insulation, low moisture absorption, and predictable machining behavior, with FR4 adding flame resistance where safety or compliance is required.
- Long-term behavior matters more than datasheet values. Properties like thermal conductivity, heat resistance, and electrical performance must remain stable over time—not just at initial qualification.
- Application context drives material selection. From switchgear and transformer insulation sheets to battery insulation sheets and motor and generator insulation, different systems place very different demands on insulation materials.
- Manufacturability is part of performance. Insulation materials that machine cleanly into CNC machined insulation parts and hold thickness tolerances reduce NPI risk and support repeatable production.
- Availability and consistency are critical in production programs. Insulation sheets in stock, offered in multiple thickness options and supported by custom cutting or machining, help OEMs scale reliably without introducing material variability.
Why Thermoset Composites Carry the Load in Critical OEM Applications
In most OEM systems, plastic insulation sheets don’t draw much attention. They’re tucked behind panels, buried inside enclosures, or machined into parts no one sees once the system is assembled. But when insulation materials are mismatched to the application – even slightly – the problems show up fast: warped assemblies, compromised electrical clearances, thermal drift, or long-term reliability issues that surface after launch.
As electrical systems grow more compact and power densities increase, insulation sheets are being pushed harder than ever. They’re no longer just electrical insulation sheets or thermal insulation plastic – they’re structural, thermal, and electrical components all at once. That’s why, in many demanding applications, thermoset composite sheets have become the default choice for engineers who value predictability over novelty.
For thermal, mechanical, and NPI engineers, the real question isn’t whether a material insulates. It’s whether it maintains dielectric strength, dimensional stability, and heat resistance over years of real-world operation.
What Plastic Insulation Sheets Really Do in a System
At first glance, plastic insulation sheets resemble other industrial plastic sheets: flat stock, cut to size, often overlooked. In practice, they behave more like engineered components.
In electrical enclosures, switchgear, battery packs, transformers, and rotating equipment, insulation sheets are frequently machined into electrical insulation panels, spacers, rails, and barriers. They maintain electrical separation, control heat flow, and carry mechanical loads – sometimes all in the same part.
That’s why properties like low moisture absorption, thermal conductivity, and long-term mechanical behavior matter just as much as initial insulation performance. When insulation materials creep, swell, or soften, entire systems drift out of spec.
Why Insulation Sheets Matter More Than They Used To
Modern systems leave little room for material compromise. Higher voltages increase electrical stress. Smaller footprints raise temperatures. Automated assembly demands consistent insulation sheet thickness options and flatness. And longer service lives expose materials to thousands of thermal cycles.
This is where established thermoset materials continue to earn their place.
Among the most widely specified are G10 / G11 sheets and FR4 insulation sheets, all glass-reinforced epoxy laminate sheets known for electrical reliability and mechanical strength. G10 and G11 are commonly selected where strength and dielectric performance are critical, while FR4 is often specified when flame resistant plastic and UL compliance are required.
Beyond epoxy laminates, engineers regularly specify phenolic laminate sheets, polyester laminate sheets, and other NEMA grade insulation sheets depending on the balance of cost, electrical performance, and temperature exposure. What these materials share is the defining advantage of thermosets: once cured, they do not soften under heat.
That single characteristic is why thermosets dominate industrial electrical insulation.
Thermosets vs Thermoplastics: The Difference Shows Up Over Time
Thermoplastics and thermosets both appear in insulation applications, but their long-term behavior couldn’t be more different.
Thermoplastics soften as temperatures rise. In low-load or intermittent-duty applications, that can be acceptable. In systems requiring high temperature insulation sheets, however, softening leads to creep, loss of dimensional stability, and gradual relaxation under load.
Thermoset composite sheets – by contrast – retain their structure. They resist deformation, maintain electrical properties, and behave predictably under continuous heat. That’s why they’re preferred for heat resistant plastic sheets used in power distribution, battery systems, and industrial machinery.
G10 vs G11 vs FR4: Similar Materials, Different Roles
Engineers use advanced materials like G10/FR4 and other composite plastics for distinct reasons.
NEMA G10 / G11 sheets are widely used for their mechanical rigidity, electrical insulation performance, and resistance to moisture. G11 offers improved performance at elevated temperatures, making it suitable for higher thermal environments where added margin is required.
FR4 insulation sheets share the same epoxy-glass construction but add flame retardancy. That makes FR4 one of the most common UL rated insulation materials, particularly in enclosed electrical systems where fire resistance and compliance matter.
From a performance standpoint, all three provide excellent electrical insulation. The decision typically comes down to temperature exposure, flame resistance, and applicable standards, not basic strength.
Performance Properties That Matter in the Real World
Insulation failures rarely trace back to a single overlooked spec. More often, materials behave differently over time than expected.
Dielectric strength matters, but so does surface resistance under humidity and contamination. Thermal conductivity matters, but only alongside long-term heat resistance. And mechanical strength matters far less than whether a material maintains dimensional stability under sustained load.
Thermoset laminates tend to perform well in these gray areas. They resist moisture uptake, hold tolerances, and maintain electrical performance across long service lives – key reasons they’re trusted in validated designs.
Where These Materials Are Commonly Used
In switchgear insulation materials and power distribution equipment, thermoset laminates like phenolic and epoxy are standard due to their resistance to arc tracking and electrical breakdown.
In transformer insulation sheets, material consistency and moisture resistance are critical to long-term electrical reliability.

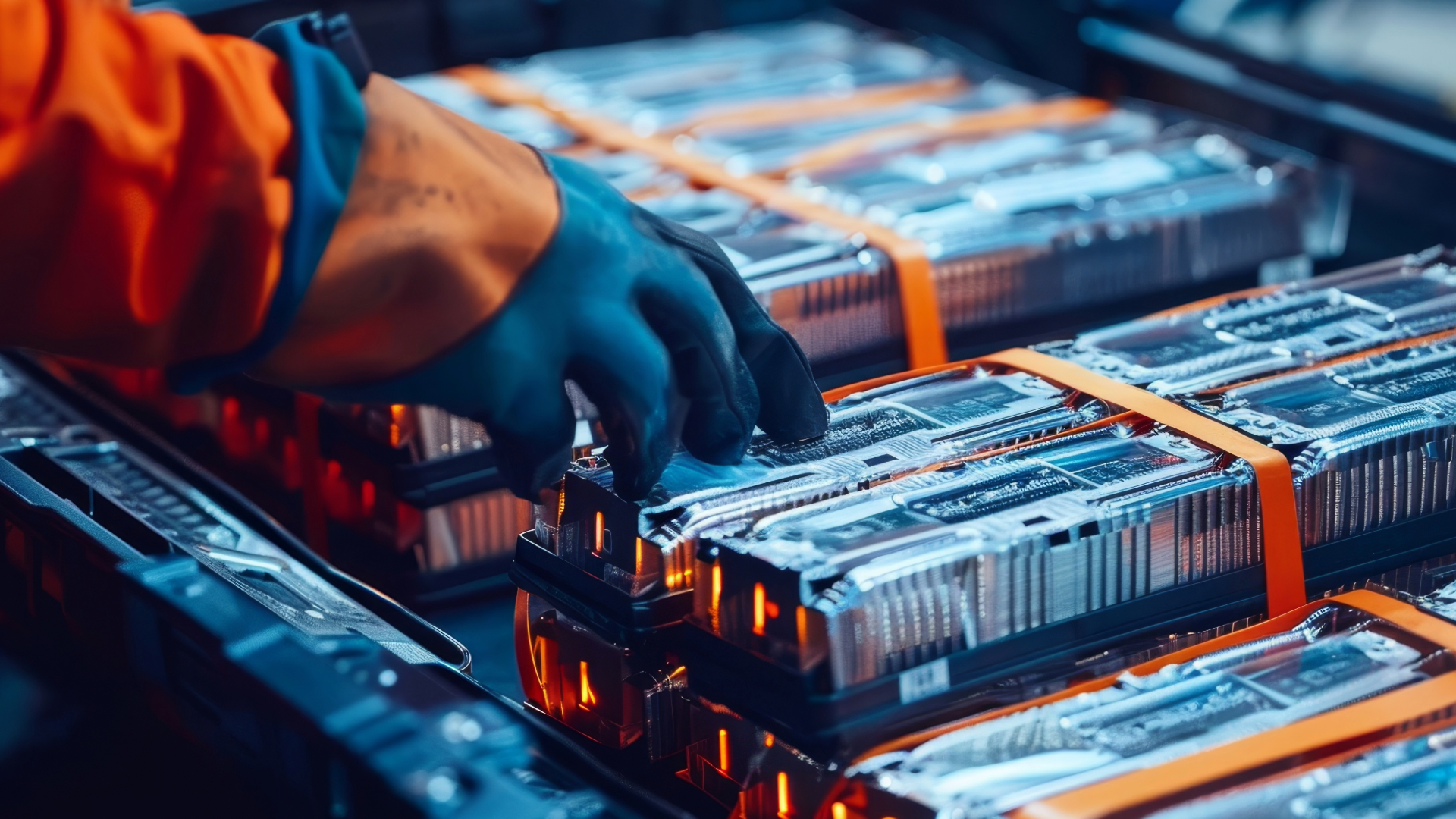

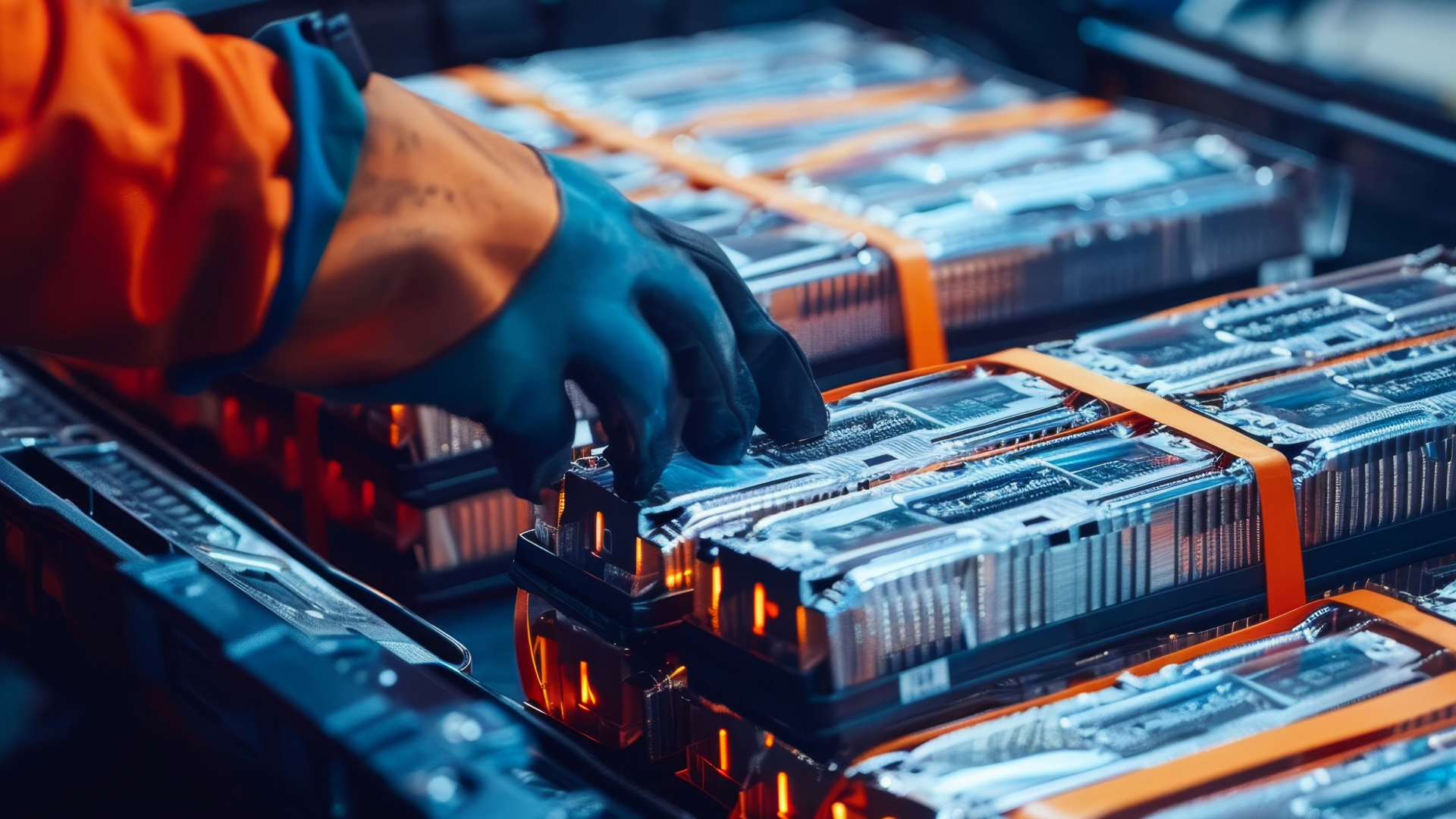

Battery insulation sheets rely on thermosets for stable thermal and electrical isolation in tightly packed assemblies.
For motor and generator insulation, repeated thermal cycling and vibration demand materials that don’t slowly deform or relax.
In regulated environments, including aerospace insulation materials, engineers often specify insulation that complies with MIL-I-24768 and relevant ASTM standards for insulation plastics, further reinforcing the role of thermosets in validated systems.
Machining Is Where Insulation Materials Are Proven
From an NPI standpoint, insulation materials must perform on the shop floor as well as in service.
Plastic insulation sheets are frequently turned into machined insulation components, whether as CNC machined insulation parts, precision spacers, or structural electrical panels. Materials that chip, smear, or move during machining introduce variation – and variation kills repeatability.
Thermoset laminates machine cleanly and predictably. They support custom cut insulation sheets, hold thickness, and allow for complex geometries without sacrificing consistency, making them well suited for scaled production.
Sourcing, Availability, and Production Reality
In real programs, the best insulation material is often the one that can be delivered consistently.
OEMs increasingly look for insulation sheets in stock, available across multiple thicknesses and formats, with the ability to transition seamlessly from sheet stock to machined insulation components. Suppliers who support both material availability and machining reduce friction between engineering, purchasing, and production.
The Quiet Case for Thermoset Insulation Sheets
Plastic insulation sheets rarely headline a design review, but their impact is hard to overstate. When insulation materials drift, systems fail quietly and expensively.
For applications involving heat, electricity, and long service lives, thermoset composite sheets – such as epoxy, phenolic, G10, G11, and FR4 – remain the most reliable choice. They offer stable electrical insulation, predictable mechanical behavior, and proven performance across industries.
And in modern OEM systems, that quiet reliability is often the most valuable feature of all.
